SYPD-2, SYPD-2_Mini, Phase Detector

Phase Detector 50Ω High Output -40°C to 85°C -55°C to 100°C 50mW 20mA Surface Mount SYPD-2+ SYPD-2 10 to 200 MHz .

SYPD-2_Mini-Circuits.pdf

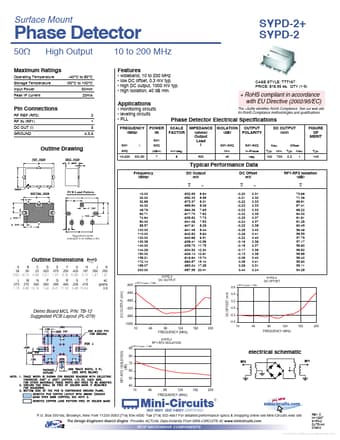

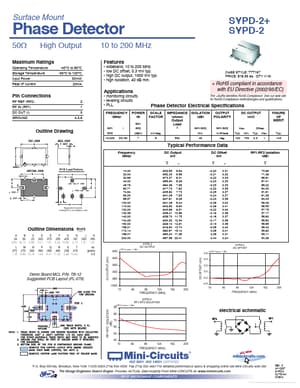

SYPD-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: SYPD-2, SYPD-2_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SYPD-2, SYPD-2_Mini

Manufacturer:

Mini-Circuits

File Size:

214.31 KB

Description:

Phase Detector

Note:

This datasheet PDF includes multiple part numbers: SYPD-2, SYPD-2_Mini.
Please refer to the document for exact specifications by model.

Features

* wideband, 10 to 200 MHz
* low DC offset, 0.3 mV typ.
* high DC output, 1000 mV typ.
* high isolation, 40 dB min. Maximum Ratings Operating Temperature Storage Temperature Input Power Peak IF current CASE STYLE: TTT167 PRICE: $18.95 ea. QTY (1-9) Pin Connections R

Applications

* + RoHS compliant in accordance with EU Directive (2002/95/EC) The +Sufﬁx identiﬁes RoHS Compliance. See our web site for RoHS Compliance methodologies and qualiﬁcations.
* monitoring circuits
* leveling circuits
* PLL FREQUENCY (MHz) RF1 RF2 10-200 DC-50 I Phase Detector E
