ICE60N800D - N-Channel MOSFET

Micross Components

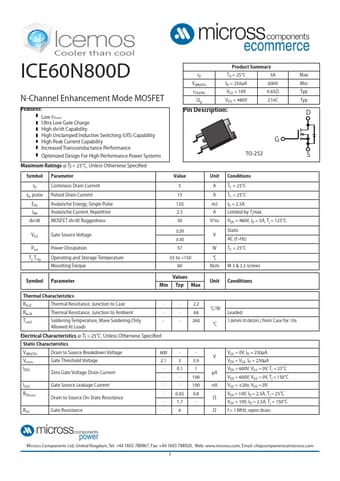

ICE60N800D Datasheet Preview — Preview of ICE60N800D PDF

Datasheet Details

Part number	ICE60N800D
Manufacturer	Micross Components
File Size	707.34 KB
Description	N-Channel MOSFET
Datasheet	ICE60N800D-MicrossComponentspdf

ICE60N800D Product details

Description

TO-252 G Max Min Typ Typ D S Symbol Parameter Value Unit Conditions ID ID, pulse EAS IAR dv/dt Continous Drain Current Pulsed Drain Current Avalanche Energy, Single Pulse Avalanche Current, Repetitive MOSFET dv/dt Ruggedness VGS Ptot Tj, Tstg Gate Source Voltage Power Dissipation Operating and Storage Temperature Mounting Torque 5 15 120 2.5 50 ±20 ±30 57 -55 to +150 60 A A mJ A V/ns V W °C Ncm TC = 25°C TC = 25°C ID = 2.5A Limited by Tjmax VDS = 480V, ID = 5A, Tj = 125°C Static AC

Features

r Low DS(on) Ultra Low Gate Charge High dv/dt Capability High Unclamped Inductive Switching (UIS) Capability High Peak Current Capability Increased Transconductance Performance Optimized Design For High Performance Power Systems Maximum Ratings @ Tj = 25°C, Unless Otherwise Specified Product Summary ID V(BR)DSS rDS(ON) Qg TA = 25°C ID = 250uA VGS = 10V VDS = 480V 5A 600V 0.65Ω 21nC Pin.
