ICE60N160B - N-Channel Enhancement Mode MOSFET

Icemos

📥 Download Datasheet

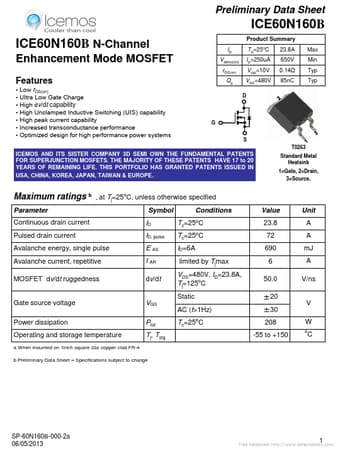

ICE60N160B Datasheet Preview — Preview of ICE60N160B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ICE60N160B
Manufacturer	Icemos
File Size	638.69 KB
Description	N-Channel Enhancement Mode MOSFET
Datasheet	ICE60N160B_Icemos.pdf

ICE60N160B Product details

Features

Low rDS(on).
Ultra Low Gate Charge.
High dv/dt capability.
High Unclamped Inductive Switching (UIS) capability.
High peak current capability.
Increased transconductance performance.
Optimized design for high performance power systems Product Summary ID V(BR)DSS rDS(on) Qg TA=25oC ID=250uA VGS=10V VDS=480V D 23.8A 650V 0.14Ω 85nC Max Min Typ Typ G S T0263 Standard Metal Heatsink 1=Gate, 2=Drain, 3=Source. ICEMOS AND ITS SISTER CO.
