ICE60N130FP - N-Channel MOSFET

Micross Components

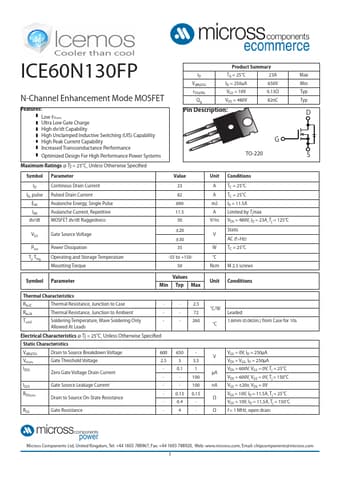

ICE60N130FP Datasheet Preview — Preview of ICE60N130FP PDF

Datasheet Details

Part number	ICE60N130FP
Manufacturer	Micross Components
File Size	718.83 KB
Description	N-Channel MOSFET
Datasheet	ICE60N130FP-MicrossComponentspdf

ICE60N130FP Product details

Description

TO-220 G Maximum Ratings @ Tj = 25°C, Unless Otherwise Specified Symbol Parameter Value Unit Conditions ID ID, pulse EAS IAR dv/dt Continous Drain Current Pulsed Drain Current Avalanche Energy, Single Pulse Avalanche Current, Repetitive MOSFET dv/dt Ruggedness VGS Ptot Tj, Tstg Gate Source Voltage Power Dissipation Operating and Storage Temperature Mounting Torque 23 82 690 11.5 50 ±20 ±30 35 -55 to +150 50 A A mJ A V/ns V W °C Ncm TC = 25°C TC = 25°C ID = 11.5A Limited by Tjmax VD

Features

r Low DS(on) Ultra Low Gate Charge High dv/dt Capability High Unclamped Inductive Switching (UIS) Capability High Peak Current Capability Increased Transconductance Performance Optimized Design For High Performance Power Systems Product Summary ID V(BR)DSS rDS(ON) Qg TA = 25°C ID = 250uA VGS = 10V VDS = 480V 23A 650V 0.13Ω 82nC Pin.
