ME6511 High Speed LDO Regulators

The ME6511 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn-on times, the ME6511 series is ideal for today’s cutting edge mobile phone. Internally the ME6511 includes a reference voltage source,.

ME6511 Features

* Maximum Output Current: 500mA （VIN＝4.3V,VOUT＝3.3V）

* Dropout Voltage: 100mV@ IOUT =100mA

* Operating Voltage Range: 1.2V～6.0V

* Highly Accuracy: ±1％

* Low Power Consumption: 30uA（TYP.）

* Standby Current: 0.1uA（TYP.）

* High Ripple Rejection: 70dB@1KHz（ME6511C33）

* Lo

ME6511 Datasheet (665.02 KB)

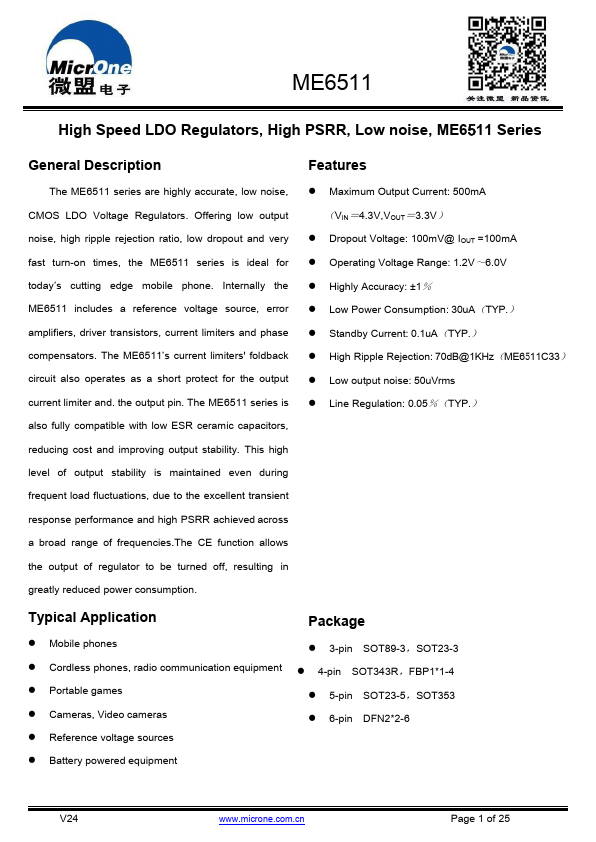

ME6511 Datasheet Preview — Preview of ME6511 PDF

Datasheet Details

Part number:

ME6511

Manufacturer:

Microne

File Size:

665.02 KB

Description:

High speed ldo regulators.
