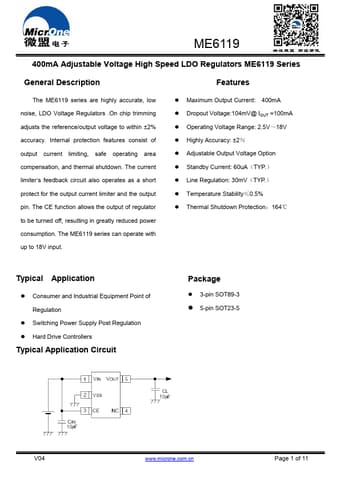

ME6119 - 400mA Adjustable Voltage High Speed LDO Regulators

Microne

Datasheet Details

Part number	ME6119
Manufacturer	Microne
File Size	571.63 KB
Description	400mA Adjustable Voltage High Speed LDO Regulators
Datasheet	ME6119-Microne.pdf

The ME6119 series are highly accurate, low noise, LDO Voltage Regulators . On chip trimming adjusts the reference/output voltage to within ±2% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The current limiter’s feedback circuit also operates as a short protect for the output current limiter and the output pin. The CE function allows the output of regulator to be turned off, resulting in greatly reduced power con.
