ME60N03S - N-Channel MOSFET

Features

  • Advanced trench process technology High density cell design for ultra low on-resistance Specially designed for High-side switching of PWM.

📥 Download Datasheet

Datasheet Details

Part number ME60N03S
Manufacturer Matsuki
File Size 1.37 MB
Description N-Channel MOSFET
Datasheet download datasheet ME60N03S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ME600815 Three-Phase Diode Bridge Modules (150 Amperes/800 Volts) Powerex Powers
ME601215 Three-Phase Diode Bridge Modules (150 Amperes/1200-1600 Volts) Powerex Powers
ME601615 Three-Phase Diode Bridge Modules (150 Amperes/1200-1600 Volts) Powerex Powers
ME6118 1A Adjustable Voltage High Speed LDO Regulators ChipSourceTek
ME6118 800mA Adjustable Voltage High Speed LDO Regulators Microne

Other Datasheets by Matsuki

Part Number Description
ME60N03S-G N-Channel MOSFET
ME60N03 30V N-Channel Enhancement Mode MOSFET
ME60N03-G 30V N-Channel Enhancement Mode MOSFET
ME60N03A 25V N-Channel Enhancement Mode MOSFET
ME60N03AS 25V N-Channel Enhancement Mode MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

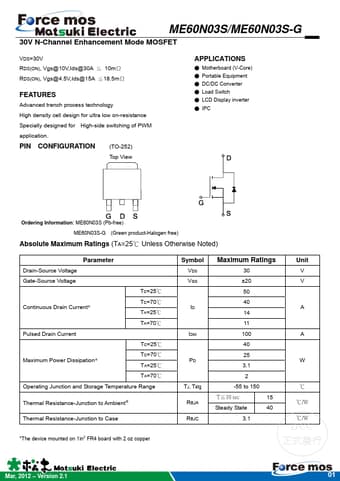

ME60N03S/ME60N03S-G 30V N-Channel Enhancement Mode MOSFET VDS=30V RDS(ON), Vgs@10V,Ids@30A ≦ 10mΩ RDS(ON), Vgs@4.5V,Ids@15A ≦18.5mΩ FEATURES Advanced trench process technology High density cell design for ultra low on-resistance Specially designed for High-side switching of PWM application.
