MT29F64G08CBAAA - NAND Flash Memory

Micron

The MT29F64G08CBAAA by Micron is a NAND Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

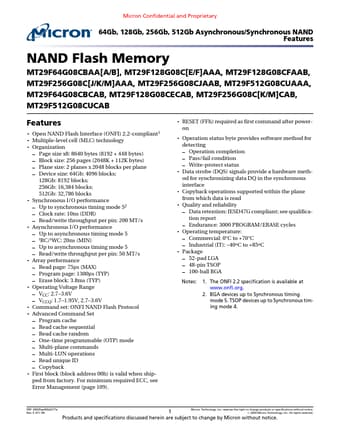

MT29F64G08CBAAA NAND Flash Memory by Micron - Datasheet Preview — Official preview page of the **MT29F64G08CBAAA** NAND Flash Memory datasheet (Micron).

Datasheet Details

Part number	MT29F64G08CBAAA
Manufacturer	Micron
File Size	2.98 MB
Description	NAND Flash Memory
Datasheet	MT29F64G08CBAAA-Micron.pdf
Additional preview pages of the MT29F64G08CBAAA datasheet.

MT29F64G08CBAAA Product details

Description

9 Asynchronous and Synchronous Signal Descriptions 9 Signal Assignments 11 Package Dimensions 14 Architecture 19 Device and Array Organization 20 Bus Operation Asynchronous Interface 27 Asynchronous Enable/Standby 27 Asynchronous Bus Idle 27 Asynchronous Commands 28 Asynchronous Addresses 29 Asynchronous Data Input 30 Asynchronous Data Output 31 Write Protect 32 Ready/Busy# 32 Bus Operation Synchronous Interface 37 Synchronous Enable/Standby 38 Synchronous Bu

Features

NAND Flash Memory MT29F64G08CBAA[A/B], MT29F128G08C[E/F]AAA, MT29F128G08CFAAB, MT29F256G08C[J/K/M]AAA, MT29F256G08CJAAB, MT29F512G08CUAAA, MT29F64G08CBCAB, MT29F128G08CECAB, MT29F256G08C[K/M]CAB, MT29F512G08CUCAB Features.
Open NAND Flash Interface (ONFI) 2.2-compliant1.
Multiple-level cell (MLC) technology.
Organization.
Page size x8: 8640 bytes (8192 + 448 bytes).
Block size: 256 pages (2048K + 112K bytes).
Plane size: 2 planes x 2048 bloc.
