MT29F32G08AECCB, MT29F16G08ABACA - NAND Flash Memory

Micron

The MT29F32G08AECCB by Micron is a NAND Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

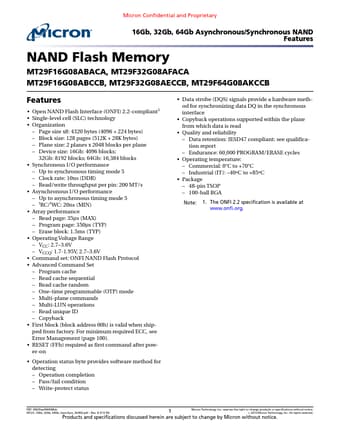

MT29F32G08AECCB NAND Flash Memory by Micron - Datasheet Preview — Official preview page of the **MT29F32G08AECCB** NAND Flash Memory datasheet (Micron).

Datasheet Details

Part number	MT29F32G08AECCB, MT29F16G08ABACA
Manufacturer	Micron
File Size	2.97 MB
Description	NAND Flash Memory
Datasheet	MT29F16G08ABACA-Micron.pdf
Note	This datasheet PDF includes multiple part numbers: MT29F32G08AECCB, MT29F16G08ABACA. Please refer to the document for exact specifications by model.
Additional preview pages of the MT29F32G08AECCB datasheet.

MT29F32G08AECCB Product details

Description

9 Asynchronous and Synchronous Signal Descriptions 9 Signal Assignments 11 Package Dimensions 13 Architecture 16 Device and Array Organization 17 Bus Operation Asynchronous Interface 22 Asynchronous Enable/Standby 22 Asynchronous Bus Idle 22 Asynchronous Commands 23 Asynchronous Addresses 24 Asynchronous Data Input 25 Asynchronous Data Output 26 Write Protect 27 Ready/Busy# 27 Bus Operation Synchronous Interface 32 Synchronous Enable/Standby 33 Synchronous Bu

Features

NAND Flash Memory MT29F16G08ABACA, MT29F32G08AFACA MT29F16G08ABCCB, MT29F32G08AECCB, MT29F64G08AKCCB Features.
Open NAND Flash Interface (ONFI) 2.2-compliant1.
Single-level cell (SLC) technology.
Organization.
Page size x8: 4320 bytes (4096 + 224 bytes).
Block size: 128 pages (512K + 28K bytes).
Plane size: 2 planes x 2048 blocks per plane.
Device size: 16Gb: 4096 blocks; 32Gb: 8192 blocks; 64Gb: 16,384 blocks.
Synchronous.
