SY100ELT22 - Dual TTL-to-Differential PECL Translator

Description

The SY100ELT22 is a dual TTL-to-differential PECL translator.

Because positive ECL (PECL) levels are used, only +5V and ground is required.

Features

  • 300 ps Typical Propagation Delay.

📥 Download Datasheet

Datasheet Details

Part number SY100ELT22
Manufacturer Microchip
File Size 242.97 KB
Description Dual TTL-to-Differential PECL Translator
Datasheet download datasheet SY100ELT22 Datasheet

📁 Similar Datasheet

  • SY100ELT22 - DUAL TTL-to-DIFFERENTIAL PECL TRANSLATOR (Micrel Semiconductor)
  • SY100ELT22L - 3.3V DUAL TTL-to-DIFFERENTIAL PECL TRANSLATOR (Micrel Semiconductor)
  • SY100ELT20V - 5V/3.3V TTL-to-DIFFERENTIAL PECL TRANSLATOR (Micrel Semiconductor)
  • SY100ELT21L - 3.3V DIFFERENTIAL LVPECL-to-LVTTL TRANSLATOR (Micrel Semiconductor)
  • SY100ELT23 - DUAL DIFFERENTIAL PECL-to-TTL TRANSLATOR (Synergy)
  • SY100ELT23 - DUAL DIFFERENTIAL PECL-to-TTL TRANSLATOR (Micrel Semiconductor)
  • SY100ELT23L - 3.3V DUAL DIFFERENTIAL LVPECL-to-LVTTL TRANSLATOR (Micrel Semiconductor)
  • SY100ELT24 - TTL-to-DIFFERENTIAL ECL TRANSLATOR (Micrel Semiconductor)
  • SY100ELT25 - DIFFERENTIAL ECL-to-TTL TRANSLATOR (Micrel Semiconductor)
  • SY100ELT982 - PECL-TO-CML TRANSLATOR (Micrel Semiconductor)
Other Datasheets by Microchip
  • SY100ELT22L - 3.3V Dual LVTTL-to-Differential LVPECL Translator
  • SY100ELT21L - 3.3V Differential LVPECL-to-LVTTL Translator
  • SY100ELT23 - Dual Differential PECL-to-TTL Translator
  • SY100ELT23L - 3.3V Dual Differential LVPECL-to-LVTTL Translator
  • SY100EL11V - 5V/3.3V ECL 1:2 Differential Fanout Buffe
  • SY100EL16V - 5V/3.3V ECL Differential Receiver
  • SY100EL16VS - 3.3V/5V Variable Output Swing Differential Receiver
  • SY100EL29V - 5V/3.3V Dual Differential Data and Clock D Flip-Flop

Full PDF Text Transcription

Click to expand full text

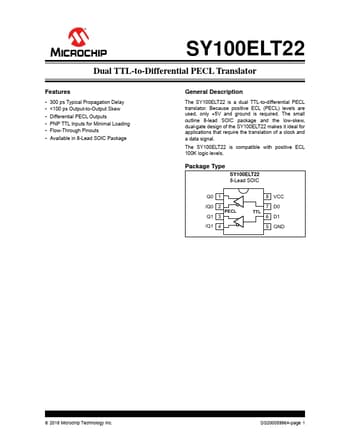

SY100ELT22 Dual TTL-to-Differential PECL Translator Features • 300 ps Typical Propagation Delay • <100 ps Output-to-Output Skew • Differential PECL Outputs • PNP TTL Inputs for Minimal Loading • Flow-Through Pinouts • Available in 8-Lead SOIC Package General Description The SY100ELT22 is a dual TTL-to-differential PECL translator. Because positive ECL (PECL) levels are used, only +5V and ground is required. The small outline 8-lead SOIC package and the low-skew, dual-gate design of the SY100ELT22 makes it ideal for applications that require the translation of a clock and a data signal. The SY100ELT22 is compatible with positive ECL 100K logic levels. Package Type SY100ELT22 8-Lead SOIC Q0 1 /Q0 2 PECL Q1 3 /Q1 4 8 VCC 7 D0 TTL 6 D1 5 GND  2018 Microchip Technology Inc.
