MIC23153 - 4MHz PWM 2A Buck Regulator

Microchip

The MIC23153 by Microchip is a 4MHz PWM 2A Buck Regulator. Below is the official datasheet preview.

📥 Download Datasheet

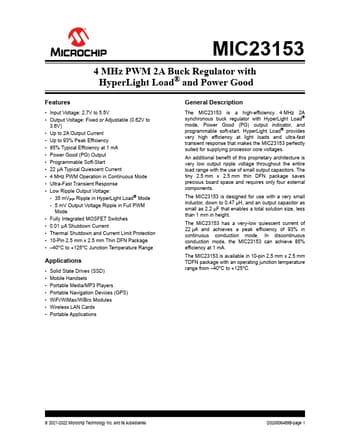

MIC23153 4MHz PWM 2A Buck Regulator by Microchip - Datasheet Preview — Official preview page of the **MIC23153** 4MHz PWM 2A Buck Regulator datasheet (Microchip).

Datasheet Details

Part number	MIC23153
Manufacturer	Microchip
File Size	3.25 MB
Description	4MHz PWM 2A Buck Regulator
Datasheet	MIC23153-Microchip.pdf
Additional preview pages of the MIC23153 datasheet.

MIC23153 Product details

Description

The MIC23153 is a high-efficiency 4 MHz 2A synchronous buck regulator with HyperLight Load® mode, Power Good (PG) output indicator, and programmable soft-start.

Features

Input Voltage: 2.7V to 5.5V.
Output Voltage: Fixed or Adjustable (0.62V to 3.6V).
Up to 2A Output Current.
Up to 93% Peak Efficiency.
85% Typical Efficiency at 1 mA.
Power Good (PG) Output.
Programmable Soft-Start.
22 µA Typical Quiescent Current.
4 MHz PWM Operation in Continuous Mode.
Ultra-Fast Transient Response.
Low Ripple Output Voltage: - 35 mVPP Ripple in HyperLight Load® Mode - 5 mV Outpu.
