MIC23159, MIC23158 - 3MHz PWM Dual 2A Buck Regulator

Microchip

The MIC23159 by Microchip is a 3MHz PWM Dual 2A Buck Regulator. Below is the official datasheet preview.

📥 Download Datasheet

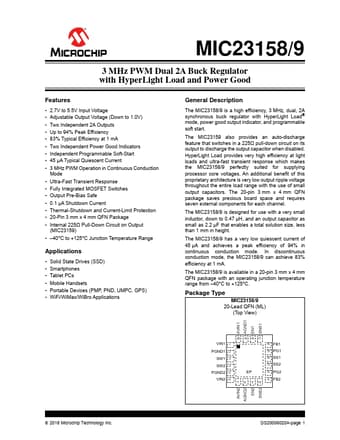

MIC23159 3MHz PWM Dual 2A Buck Regulator by Microchip - Datasheet Preview — Official preview page of the **MIC23159** 3MHz PWM Dual 2A Buck Regulator datasheet (Microchip).

Datasheet Details

Part number	MIC23159, MIC23158
Manufacturer	Microchip
File Size	1.24 MB
Description	3MHz PWM Dual 2A Buck Regulator
Datasheet	MIC23158-Microchip.pdf
Note	This datasheet PDF includes multiple part numbers: MIC23159, MIC23158. Please refer to the document for exact specifications by model.
Additional preview pages of the MIC23159 datasheet.

MIC23159 Product details

Description

The MIC23158/9 is a high efficiency, 3 MHz, dual, 2A synchronous buck regulator with HyperLight Load® mode, power good output indicator, and programmable soft start.

Features

2.7V to 5.5V Input Voltage.
Adjustable Output Voltage (Down to 1.0V).
Two Independent 2A Outputs.
Up to 94% Peak Efficiency.
83% Typical Efficiency at 1 mA.
Two Independent Power Good Indicators.
Independent Programmable Soft-Start.
45 µA Typical Quiescent Current.
3 MHz PWM Operation in Continuous Conduction Mode.
Ultra-Fast Transient Response.
Fully Integrated MOSFET Switches.
Output Pr.
