MIC2004, MIC2005A - Fixed and Adjustable Current Limiting Power Distribution Switches

Microchip

The MIC2004 by Microchip is a Fixed and Adjustable Current Limiting Power Distribution Switches. Below is the official datasheet preview.

📥 Download Datasheet

MIC2004 Fixed and Adjustable Current Limiting Power Distribution Switches by Microchip - Datasheet Preview — Official preview page of the **MIC2004** Fixed and Adjustable Current Limiting Power Distribution Switches datasheet (Microchip).

Datasheet Details

Part number	MIC2004, MIC2005A
Manufacturer	Microchip
File Size	3.83 MB
Description	Fixed and Adjustable Current Limiting Power Distribution Switches
Datasheet	MIC2005A-Microchip.pdf
Note	This datasheet PDF includes multiple part numbers: MIC2004, MIC2005A. Please refer to the document for exact specifications by model.

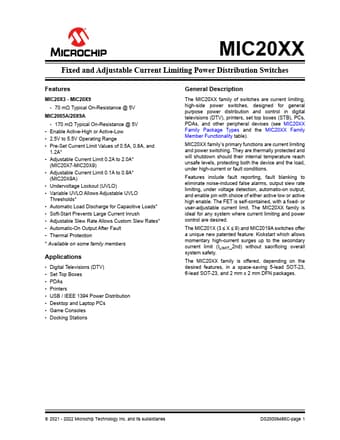

Additional preview pages of the MIC2004 datasheet.

MIC2004 Product details

Description

The MIC20XX family of switches are current limiting, high-side power switches, designed for general purpose power distribution and control in digital televisions (DTV), printers, set top boxes (STB), PCs, PDAs, and other peripheral devices (see MIC20XX Family Package Types and the MIC20XX Family Member Functionality table).

Features

MIC20X3 - MIC20X9 - 70 mΩ Typical On-Resistance @ 5V MIC2005A/20X9A - 170 mΩ Typical On-Resistance @ 5V.
Enable Active-High or Active-Low.
2.5V to 5.5V Operating Range.
Pre-Set Current Limit Values of 0.5A, 0.8A, and 1.2A.
Adjustable Current Limit 0.2A to 2.0A.
(MIC20X7-MIC20X9).
Adjustable Current Limit 0.1A to 0.9A.
(MIC20X9A).
Undervoltage Lockout (UVLO).
Variable UVLO Allows Adjustable UVLO Thresholds.
