MIC23099 - Single AA/AAA Cell Step-Up/Step-Down Regulators

Micrel Semiconductor

The MIC23099 by Micrel Semiconductor is a Single AA/AAA Cell Step-Up/Step-Down Regulators. Below is the official datasheet preview.

📥 Download Datasheet

MIC23099 Single AA/AAA Cell Step-Up/Step-Down Regulators by Micrel Semiconductor - Datasheet Preview — Official preview page of the **MIC23099** Single AA/AAA Cell Step-Up/Step-Down Regulators datasheet (Micrel Semiconductor).

Datasheet Details

Part number	MIC23099
Manufacturer	Micrel Semiconductor
File Size	2.11 MB
Description	Single AA/AAA Cell Step-Up/Step-Down Regulators
Datasheet	MIC23099-MicrelSemiconductor.pdf

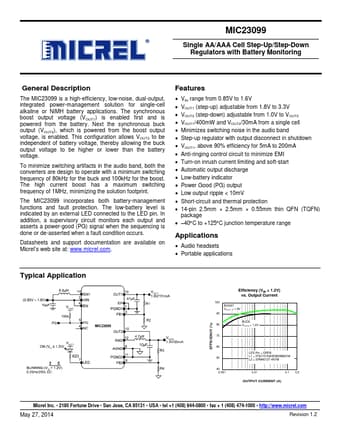

Additional preview pages of the MIC23099 datasheet.

MIC23099 Product details

Description

The MIC23099 is a high-efficiency, low-noise, dual-output, integrated power-management solution for single-cell alkaline or NiMH battery applications.

Features

VIN range from 0.85V to 1.6V VOUT1 (step-up) adjustable from 1.8V to 3.3V VOUT2 (step-down) adjustable from 1.0V to VOUT2 VOUT1/400mW and VOUT2/30mA from a single cell Minimizes switching noise in the audio band Step-up regulator with output disconnect in shutdown VOUT1, above 90% efficiency for 5mA to 200mA Anti-ringing control circuit to minimize EMI Turn-on inrush current limiting and soft-start Automatic output discharge Low-battery indicator Power Good (PG) output Low output ripple < 10mV S.
