MAX156 - 8-/4-Channel ADCs

Product Overview

Maxim

Datasheet Details

Part number	MAX156
Manufacturer	Maxim
File Size	423.45 KB
Description	8-/4-Channel ADCs
Datasheet	MAX156 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX156, MAX. Please refer to the document for exact specifications by model.
Additional preview pages of the MAX156 datasheet.

Product details

Description

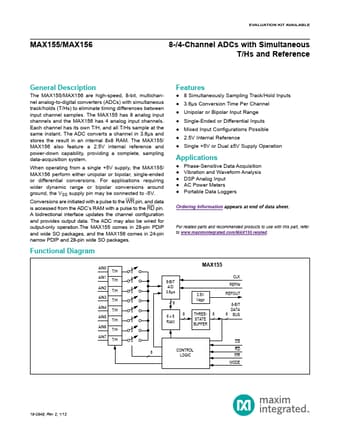

The MAX155/MAX156 are high-speed, 8-bit, multichannel analog-to-digital converters (ADCs) with simultaneous track/holds (T/Hs) to eliminate timing differences between input channel samples.

Features

8 Simultaneously Sampling Track/Hold Inputs.
3.6µs Conversion Time Per Channel.
Unipolar or Bipolar Input Range.
Single-Ended or Differential Inputs.
Mixed Input Configurations Possible.
2.5V Internal Reference.
Single +5V or Dual ±5V Supply Operation.
