MAX1565 - Small / High-Efficiency / Five-Channel Digital Still Camera Power Supply

Product Overview

Maxim

Part number	MAX1565
Manufacturer	Maxim
File Size	512.79 KB
Description	Small / High-Efficiency / Five-Channel Digital Still Camera Power Supply
Datasheet	MAX1565 Datasheet

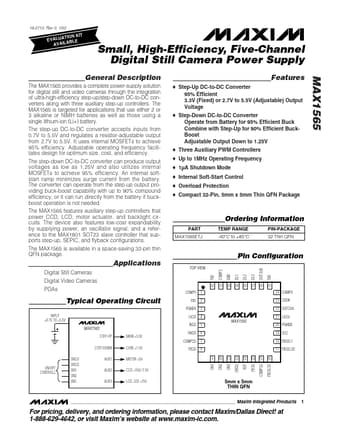

Additional preview pages of the MAX1565 datasheet.

o Step-Up DC-to-DC Converter 95% Efficient 3.3V (Fixed) or 2.7V to 5.5V (Adjustable) Output Voltage o Step-Down DC-to-DC Converter Operate from Battery for 95% Efficient Buck Combine with Step-Up for 90% Efficient BuckBoost Adjustable Output Down to 1.25V o Three Auxiliary PWM Controllers o Up to 1MHz Operating Frequency o 1µA Shutdown Mode o Internal Soft-Start Control o Overload Protection o Compact 32-Pin, 5mm x 5mm Thin QFN Package MAX1565 The MAX1565 provides a complete power-supply solut.
