MAX86140 - Best-in-Class Optical Pulse Oximeter and Heart-Rate Sensor

Maxim Integrated

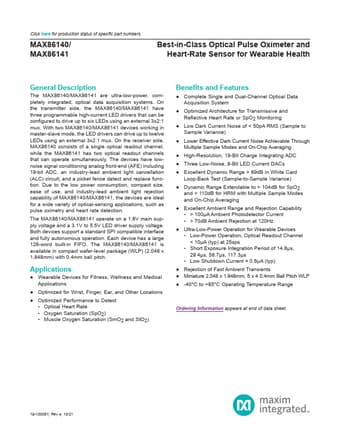

The MAX86140 by Maxim Integrated is a Best-in-Class Optical Pulse Oximeter and Heart-Rate Sensor. Below is the official datasheet preview.

📥 Download Datasheet

MAX86140 Best-in-Class Optical Pulse Oximeter and Heart-Rate Sensor by Maxim Integrated - Datasheet Preview — Official preview page of the **MAX86140** Best-in-Class Optical Pulse Oximeter and Heart-Rate Sensor datasheet (Maxim Integrated).

Datasheet Details

Part number	MAX86140
Manufacturer	Maxim Integrated
File Size	1.43 MB
Description	Best-in-Class Optical Pulse Oximeter and Heart-Rate Sensor
Datasheet	MAX86140-MaximIntegrated.pdf
Additional preview pages of the MAX86140 datasheet.

MAX86140 Product details

Description

The MAX86140/MAX86141 are ultra-low-power, completely integrated, optical data acquisition systems.

Features

Complete Single and Dual-Channel Optical Data Acquisition System.
Optimized Architecture for Transmissive and Reflective Heart Rate or SpO2 Monitoring.
Low Dark Current Noise of < 50pA RMS (Sample to Sample Variance).
Lower Effective Dark Current Noise Achievable Through Multiple Sample Modes and On-Chip Averaging.
High-Resolution, 19-Bit Charge Integrating ADC.
Three Low-Noise, 8-Bit LED Current DACs.
Excellent Dynamic Range > 89dB in White Card Loop-Back Tes.
