MAX8614A - (MAX8614A / MAX8614B) Dual-Output (+ and -) DC-DC Converters

Description

The MAX8614A/MAX8614B dual-output step-up DC-DC converters generate both a positive and negative supply voltage that are each independently regulated.

The positive output delivers up to 50mA while the inverter supplies up to 100mA with input voltages between 2.7V and 5.5V.

Features

  • include pin-selectable power-on sequencing for use with a wide variety of CCDs, True Shutdown™, overload protection, fault flag, and internal soft-start with controlled inrush current. The MAX8614A/MAX8614B are available in a spacesaving 3mm x 3mm 14-pin TDFN package and are specified over the -40°C to +85°C extended temperature range.
  • Dual Output Voltages (+ and -).
  • Adjustable Up to +24V and Down to -10V at 5.5VIN.
  • Output Short/Overload Protection.
  • True Shut.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX86140 Best-in-Class Optical Pulse Oximeter and Heart-Rate Sensor Maxim Integrated
MAX86141 Best-in-Class Optical Pulse Oximeter and Heart-Rate Sensor Maxim Integrated
MAX861 Switched-Capacitor Voltage Converters Maxim Integrated
MAX86150 Integrated Photoplethysmogram and Electrocardiogram Bio-Sensor Maxim Integrated
MAX860 Switched-Capacitor Voltage Converters Maxim

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX8614B (MAX8614A / MAX8614B) Dual-Output (+ and -) DC-DC Converters
MAX8600 Single-/Dual-Input 1-Cell Li Chargers
MAX8600A Single-Input 1-Cell Li+ Charger
MAX8601 Single-/Dual-Input 1-Cell Li Chargers
MAX8606 Li+ Linear Battery Charger

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

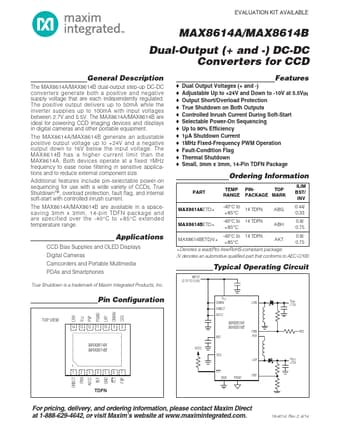

www.DataSheet4U.com 19-4014; Rev 0; 3/06 Dual-Output (+ and -) DC-DC Converters for CCD General Description The MAX8614A/MAX8614B dual-output step-up DC-DC converters generate both a positive and negative supply voltage that are each independently regulated. The positive output delivers up to 50mA while the inverter supplies up to 100mA with input voltages between 2.7V and 5.5V. The MAX8614A/MAX8614B are ideal for powering CCD imaging devices and displays in digital cameras and other portable equipment. The MAX8614A/MAX8614B generate an adjustable positive output voltage up to +24V and a negative output down to 16V below the input voltage. The MAX8614B has a higher current limit than the MAX8614A.
