MAX8614B, MAX8614A - (MAX8614A / MAX8614B) Dual-Output (+ and -) DC-DC Converters

Maxim Integrated Products

The MAX8614B by Maxim Integrated Products is a (MAX8614A / MAX8614B) Dual-Output (+ and -) DC-DC Converters. Below is the official datasheet preview.

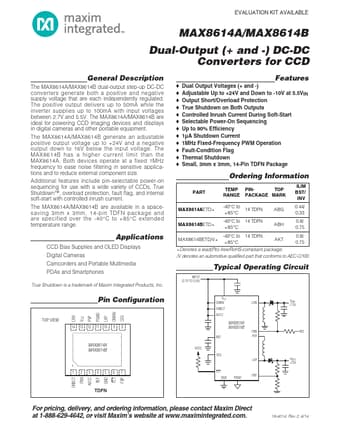

📥 Download Datasheet

MAX8614B (MAX8614A / MAX8614B) Dual-Output (+ and -) DC-DC Converters by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX8614B** (MAX8614A / MAX8614B) Dual-Output (+ and -) DC-DC Converters datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX8614B, MAX8614A
Manufacturer	Maxim Integrated Products
File Size	384.42 KB
Description	(MAX8614A / MAX8614B) Dual-Output (+ and -) DC-DC Converters
Datasheet	MAX8614A_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX8614B, MAX8614A. Please refer to the document for exact specifications by model.
Additional preview pages of the MAX8614B datasheet.

MAX8614B Product details

Description

The MAX8614A/MAX8614B dual-output step-up DC-DC converters generate both a positive and negative supply voltage that are each independently regulated.

Features

include pin-selectable power-on sequencing for use with a wide variety of CCDs, True Shutdown™, overload protection, fault flag, and internal soft-start with controlled inrush current. The MAX8614A/MAX8614B are available in a spacesaving 3mm x 3mm 14-pin TDFN package and are specified over the -40°C to +85°C extended temperature range.
Dual Output Voltages (+ and -).
Adjustable Up to +24V and Down to -10V at 5.5VIN.
Output Short/Overload Protection.
True Shut.
