MAX40659 - Transimpedance Amplifier

Product Overview

Maxim Integrated

Part number	MAX40659
Manufacturer	Maxim Integrated
File Size	578.31 KB
Description	Transimpedance Amplifier
Datasheet	MAX40659 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX40659, MAX40658. Please refer to the document for exact specifications by model.

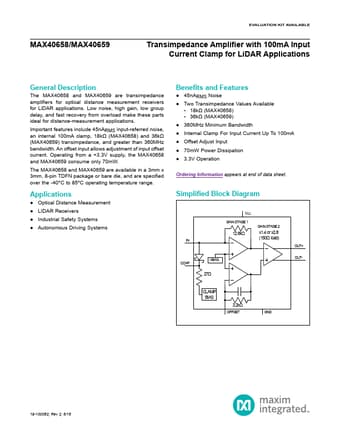

Additional preview pages of the MAX40659 datasheet.

The MAX40658 and MAX40659 are transimpedance amplifiers for optical distance measurement receivers for LiDAR applications.

include 45nARMS input-referred noise, an internal 100mA clamp, 18kΩ (MAX40658) and 36kΩ (MAX40659) transimpedance, and greater than 360MHz bandwidth. An offset input allows adjustment of input offset current. Operating from a +3.3V supply, the MAX40658 and MAX40659 consume only 70mW. The MAX40658 and MAX40659 are available in a 3mm x 3mm, 8-pin TDFN package or bare die, and are specified over the -40°C to 85°C operating temperature range.
