MAX4066 - Low-Cost / Low-Voltage / Quad / SPST / CMOS Analog Switches

Product Overview

Maxim

Part number	MAX4066
Manufacturer	Maxim
File Size	112.76 KB
Description	Low-Cost / Low-Voltage / Quad / SPST / CMOS Analog Switches
Datasheet	MAX4066 Datasheet

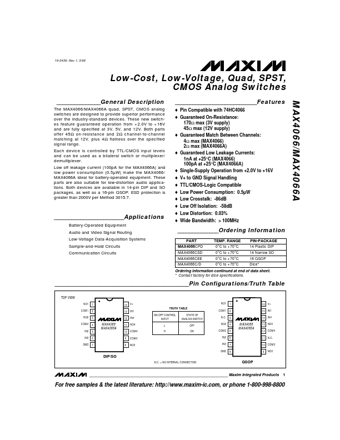

Additional preview pages of the MAX4066 datasheet.

The MAX4066/MAX4066A quad, SPST, CMOS analog switches are designed to provide superior performance over the industry-standard devices.

o Pin Compatible with 74HC4066 o Guaranteed On-Resistance: 170Ω max (3V supply) 45Ω max (12V supply) o Guaranteed Match Between Channels: 4Ω max (MAX4066) 2Ω max (MAX4066A) o Guaranteed Low Leakage Currents: 1nA at +25°C (MAX4066) 100pA at +25°C (MAX4066A) o Single-Supply Operation from +2.0V to +16V o V+ to GND Signal Handling o TTL/CMOS-Logic Compatible o Low Power Consumption: 0.5µW o Low Crosstalk: -86dB o Low Off Isolation: -58dB o Low Distortion: 0.03% o Wide Bandwidth: > 100MHz MAX4066/M.
