MAX40660 - Transimpedance Amplifier

Product Overview

Maxim Integrated

Part number	MAX40660
Manufacturer	Maxim Integrated
File Size	923.47 KB
Description	Transimpedance Amplifier
Datasheet	MAX40660 Datasheet

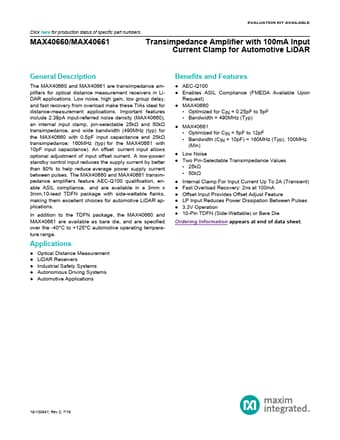

Additional preview pages of the MAX40660 datasheet.

The MAX40660 and MAX40661 are transimpedance amplifiers for optical distance measurement receivers in LiDAR applications.

include 2.38pA input-referred noise density (MAX40660), an internal input clamp, pin-selectable 25kΩ and 50kΩ transimpedance, and wide bandwidth (490MHz (typ) for the MAX40660 with 0.5pF input capacitance and 25kΩ transimpedance; 160MHz (typ) for the MAX40661 with 10pF input capacitance). An offset current input allows optional adjustment of input offset current. A low-power/ standby control input reduces the supply current by better than 80% to help reduce average power supply current between p.
