MAX4063 - Differential Microphone Preamplifier

Product Overview

Maxim Integrated

Part number	MAX4063
Manufacturer	Maxim Integrated
File Size	222.12 KB
Description	Differential Microphone Preamplifier
Datasheet	MAX4063 Datasheet

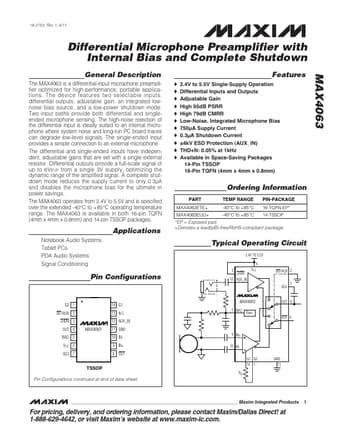

Additional preview pages of the MAX4063 datasheet.

The MAX4063 is a differential-input microphone preamplifier optimized for high-performance, portable applications.

two selectable inputs, differential outputs, adjustable gain, an integrated lownoise bias source, and a low-power shutdown mode. Two input paths provide both differential and singleended microphone sensing. The high-noise rejection of the differential input is ideally suited to an internal microphone where system noise and long-run PC board traces can degrade low-level signals. The single-ended input provides a simple connection to an external microphone. The differential and single-ended inputs.
