MAX14781E - Half-Duplex RS-485 Transceiver

Product Overview

Maxim Integrated

Part number	MAX14781E
Manufacturer	Maxim Integrated
File Size	406.92 KB
Description	Half-Duplex RS-485 Transceiver
Datasheet	MAX14781E Datasheet

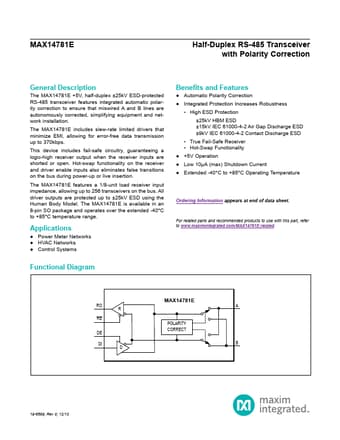

Additional preview pages of the MAX14781E datasheet.

The MAX14781E +5V, half-duplex ±25kV ESD-protected RS-485 transceiver

integrated automatic polarity correction to ensure that miswired A and B lines are autonomously corrected, simplifying equipment and network installation. The MAX14781E includes slew-rate limited drivers that minimize EMI, allowing for error-free data transmission up to 370kbps. This device includes fail-safe circuitry, guaranteeing a logic-high receiver output when the receiver inputs are shorted or open. Hot-swap functionality on the receiver and driver enable inputs also eliminates false tran.
