MAX14782E - 500Kbps 3.3V to 5V RS-485/RS-422 Transceiver

Product Overview

Maxim Integrated

Part number	MAX14782E
Manufacturer	Maxim Integrated
File Size	643.53 KB
Description	500Kbps 3.3V to 5V RS-485/RS-422 Transceiver
Datasheet	MAX14782E Datasheet

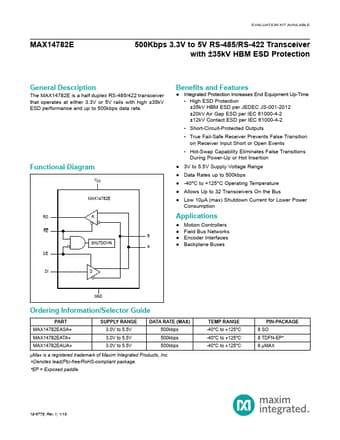

Additional preview pages of the MAX14782E datasheet.

The MAX14782E is a 3.3V to 5V ESD-protected transceiver intended for half-duplex RS-485/RS-422 communication up to 500kbps.

include short-circuit-protected outputs, hot-swap functionality, and a true fail-safe receiver, guaranteeing a logic-high receiver output when inputs are shorted or open. Hotswap capability eliminates undesired transitions on the bus during power-up or hot insertion. The transceiver draws 1.9mA (typ) supply current when unloaded or when fully loaded with the drivers disabled and draws less than 10µA (max) of supply current in lowpower shutdown mode. The MAX14782E is available in 8-pin µMAX®, 8-p.
