MAX14783E - High-Speed 3.3V/5V RS-485/RS-422 Transceiver

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX14783E
Manufacturer	Maxim Integrated
File Size	522.59 KB
Description	High-Speed 3.3V/5V RS-485/RS-422 Transceiver
Datasheet	MAX14783E Datasheet

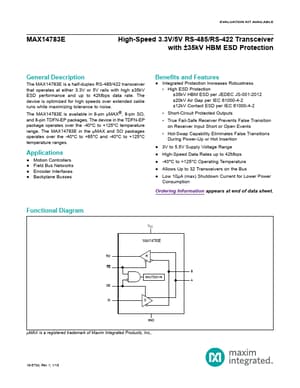

Additional preview pages of the MAX14783E datasheet.

Product details

Description

The MAX14783E is a half-duplex RS-485/422 transceiver that operates at either 3.3V or 5V rails with high ±35kV ESD performance and up to 42Mbps data rate.

Features

Integrated Protection Increases Robustness.
High ESD Protection ±35kV HBM ESD per JEDEC JS-001-2012 ±20kV Air Gap per IEC 61000-4-2 ±12kV Contact ESD per IEC 61000-4-2.
Short-Circuit Protected Outputs.
True Fail-Safe Receiver Prevents False Transition on Receiver Input Short or Open Events.
Hot-Swap Capability Eliminates False Transitions During Power-Up or Hot Insertion.
3V to 5.5V Supply Voltage Range.
High-Spee.
