MDS1528 - N-Channel Trench MOSFET

Name: MDS1528
SKU: MDS1528-1107931

MagnaChip

📥 Download Datasheet

MDS1528 Datasheet Preview — Preview of MDS1528 PDF

Datasheet Details

Part number	MDS1528
Manufacturer	MagnaChip
File Size	667.97 KB
Description	N-Channel Trench MOSFET
Datasheet	MDS1528-MagnaChip.pdf

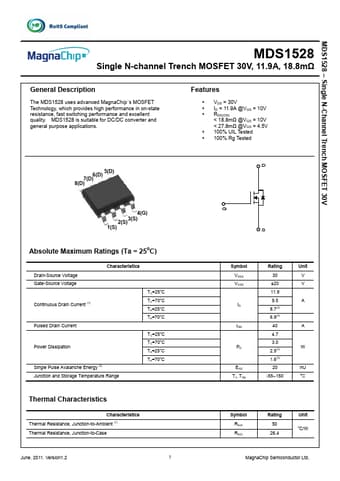

MDS1528 Product details

Description

The MDS1528 uses advanced MagnaChip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching performance and excellent quality.

Features

VDS = 30V ID = 11.9A @VGS = 10V RDS(ON) < 18.8mΩ @VGS = 10V < 27.8mΩ @VGS = 4.5V 100% UIL Tested 100% Rg Tested 5(D) 6(D) 7(D) 8(D) 4(G) 3(S) 2(S) 1(S) Absolute Maximum Ratings (Ta = 25oC) Drain-Source Voltage Gate-Source Voltage Characteristics Continuous Drain Current (1) Pulsed Drain Current Power Dissipation Single Pulse Avalanche Energy (2) Junction and Storage Temperature Range TC=25oC TC=70oC TA=25oC TA=70oC TC=25oC TC=70oC TA=25oC TA=70oC Thermal Characteristics Characteristics.
