MDS110 - Three Phase Bridge Rectifier

Name: MDS110
SKU: MDS110-906816

Naina Semiconductor

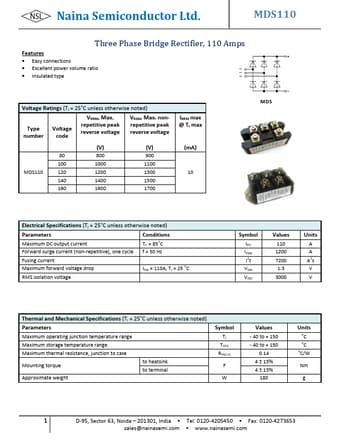

The MDS110 by Naina Semiconductor is a Three Phase Bridge Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	MDS110
Manufacturer	Naina Semiconductor
File Size	276.92 KB
Description	Three Phase Bridge Rectifier
Datasheet	MDS110-NainaSemiconductor.pdf
Additional preview pages of the MDS110 datasheet.

Easy connections.
Excellent power volume ratio.
Insulated type Voltage Ratings (TJ = 25oC unless otherwise noted) Type number Voltage code VRRM, Max. repetitive peak reverse voltage VRSM, Max. nonrepetitive peak reverse voltage MDS110 80 100 120 140 160 (V) 800 1000 1200 1400 1600 (V) 900 1100 1300 1500 1700 IRRM max @ TJ max (mA) 10 MDS Electrical Specifications (TJ = 25oC unless otherwise noted) Parameters Conditions Maximum DC output current TC = 85.
