MT8311 - High Voltage Hall-Effect Switch IC

Description

The MT831X family is produced by BCD technology with both high performance and high reliability.

📥 Download Datasheet

Datasheet Details

Part number MT8311
Manufacturer MagnTek
File Size 1.91 MB
Description High Voltage Hall-Effect Switch IC
Datasheet download datasheet MT8311 Datasheet

📁 Similar Datasheet

  • MT830 - LCD Projector User Manual (NEC)
  • MT8302N3 - N-Channel MOSFET (MT Semiconductor)
  • MT8306N3 - N-Channel MOSFET (MT Semiconductor)
  • MT8332N3 - N-Channel Enhancement Mode Field Effect Transistor (MT Semiconductor)
  • MT8332N5 - 30V 25A MOSFET (MT Semiconductor)
  • MT8350 - N-Channel MOSFET (MT Semiconductor)
  • MT8361N3 - Dual N- & P-Channel Power MOSFET (MT Semiconductor)
  • MT8362N3 - Dual N- & P-Channel Power MOSFET (MT Semiconductor)
  • MT8382N3 - 30V Power MOSFET (MT Semiconductor)
  • MT8386M5 - N-Channel Enhancement Mode Field Effect Transistor (MT Semiconductor)
Other Datasheets by MagnTek
  • MT8312 - High Voltage Hall-Effect Switch IC
  • MT8313 - High Voltage Hall-Effect Switch IC

Full PDF Text Transcription

Click to expand full text

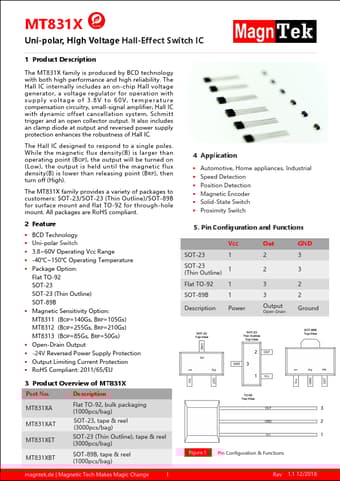

MT831X Uni-polar, High Voltage Hall-Effect Switch IC 1 Product Description The MT831X family is produced by BCD technology with both high performance and high reliability. The Hall IC internally includes an on-chip Hall voltage generator, a voltage regulator for operation with supply voltage of 3.8V to 60V, temperature compensation circuitry, small-signal amplifier, Hall IC with dynamic offset cancellation system, Schmitt trigger and an open collector output. It also includes an clamp diode at output and reversed power supply protection enhances the robustness of Hall IC. The Hall IC designed to respond to a single poles.
