M141NWW1-101 - TFT LCD

The M141NWW1-101 by MTDis is a TFT LCD. Below is the official datasheet preview.

Datasheet Details

Part number	M141NWW1-101
Manufacturer	MTDis
File Size	1.65 MB
Description	TFT LCD
Datasheet	M141NWW1-101-MTDis.pdf

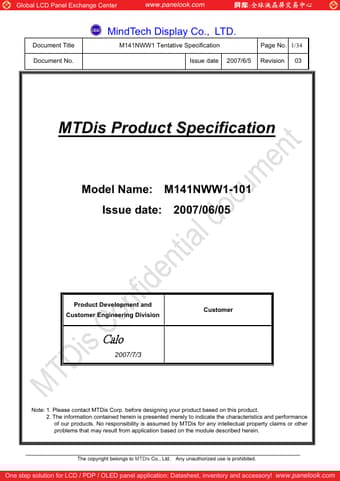

Additional preview pages of the M141NWW1-101 datasheet.

M141NWW1-101 Product details

Description

01 2007/05/23 -- -- 02 2007/5/31 11 Definition of Luminance Uniformity 24 The 7.6 mm position of the arrow Inverter Ignition design point Voltage:132 @Ta=0к 12 ,1200 Vrms @Ta=25к 03 2007/6/5 CCFL Frequency 62k Hz 13 -- 4 -6 Shcok 240G max Weight 395(max) 26 BMΚΪa-bΪ&Ϊc-dΪ=2.0mm New Description M141NWW1 tentative spec.was first issued.UNF(13 pin)=Min/max Shift to new position Remark Inverter Ignition minimum Voltage:1320 @Ta=0к ,1200 Vrms @Ta=25к CCFL Frequency 50k Hz The inverter k

Features

Ŷ 14.1”WXGA TFT LCD Panel Ŷ 1 CCFL Backlight System Ŷ Supported WXGA (V:1280 lines, H:800 pixels) resolution Ŷ Compatible with RoHS Standard Ŷ VESA Compliant 1.3 Product Summary Items Specifications Unit Screen Diagonal 14.1 inch Diagonal Inch Active Area 303.36(H) x 189.6(V) mm Pixels H x V 1,280 (x3) x 800 Pixel Pitch 0.237×0.237 mm Pixel Arrangement R. G. B. Vertical Stripe Display Mode White Luminance Normally White 200 typical cd/ m2 (CCFL current 6.0mA) Contrast Ratio 3.
