M140NWR1-R0 - TFT LCD

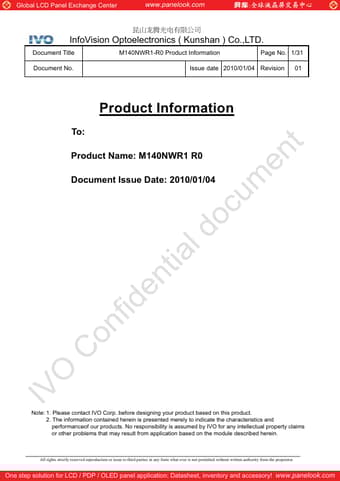

The M140NWR1-R0 by IVO is a TFT LCD. Below is the official datasheet preview.

Datasheet Details

Part number	M140NWR1-R0
Manufacturer	IVO
File Size	1.43 MB
Description	TFT LCD
Datasheet	M140NWR1-R0-IVO.pdf
Additional preview pages of the M140NWR1-R0 datasheet.

M140NWR1-R0 Product details

Description

00 2009/12/09 all -- 01 2010/01/04 13,29 1. Add color engine function 2. Update EDID New Description First issue.-- Remark ________________________________________________________________________ All rights strictly reserved reproduction or issue to third parties in any form what ever is not permitted without written authority from the proprietor.One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Cente

Features

Ŷ 14.0” TFT LCD Panel Ŷ LED Light-bar Backlight System Ŷ Supported (1,366x768 pixels) resolution Ŷ Compatible with RoHS standard 1.3 Product Summary Items Specifications Unit Screen Diagonal 14.0 Inch Active Area 309.40 (H) x 173.95 (V) mm Pixels H x V 1,366 x3(RGB) x 768 Pixel Pitch 0.2265×0.2265 mm Pixel Arrangement R. G. B. Vertical Stripe Display Mode White Luminance Normally White 200 (Typ. ) 5 Points Average cd /m2 Contrast Ratio 500 (Typ. ) Response Time 8 (Typ. ) msec.
