M140NWR2-R0 - TFT LCD

The M140NWR2-R0 by IVO is a TFT LCD. Below is the official datasheet preview.

Datasheet Details

Part number	M140NWR2-R0
Manufacturer	IVO
File Size	1.52 MB
Description	TFT LCD
Datasheet	M140NWR2-R0-IVO.pdf

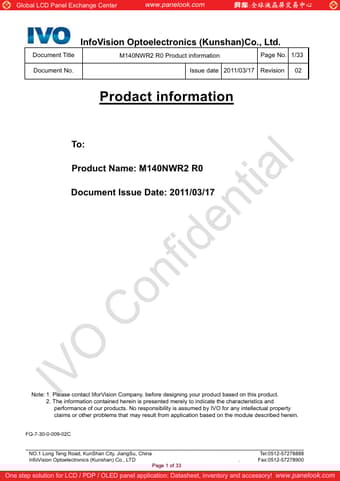

Additional preview pages of the M140NWR2-R0 datasheet.

M140NWR2-R0 Product details

Description

New Description Remark 00 2010/01/08 All -- First issued 12 No V_DBC,V_CE parameter 01 2010/01/29 23 Figure 15 back side drawing Add V_DBC,V_CE parameter Add Label mark Correct PIN 1 position Rx/Ry/Gx/Gy/Bx/By parameter Add Rx/Ry/Gx/Gy/Bx/By 8 TBD parameter 02 2010/03/04 25 Package specification TBD Add Package specification 28 EDID data TBD Add EDID data 03 2011/3/17 13 Old Signal Pin Assignment Update 19pin from CE to NC 04 2011/3/17 21 05 2011/3/17 15 Old Power Se

Features

Ŷ 14.0” TFT LCD Panel Ŷ LED Light-bar Backlight System Ŷ Supported (1,366x768 pixels) resolution Ŷ Compatible with RoHS standard 1.3 Product Summary Items Specifications Unit Screen Diagonal 14.0 Inch Active Area 309.399 (H) x 173.952 (V) mm Pixels H x V 1,366 x3(RGB) x 768 Pixel Pitch 0.2265×0.2265 mm Pixel Arrangement R. G. B. Vertical Stripe Display Mode White Luminance Normally White 200 (Typ. ) 5 Points Average cd /m2 Contrast Ratio 500 (Typ. ) Response Time 8 (Typ. ) mse.
