M140NWR2-R1 - TFT LCD

The M140NWR2-R1 by IVO is a TFT LCD. Below is the official datasheet preview.

Datasheet Details

Part number	M140NWR2-R1
Manufacturer	IVO
File Size	0.99 MB
Description	TFT LCD
Datasheet	M140NWR2-R1-IVO.pdf

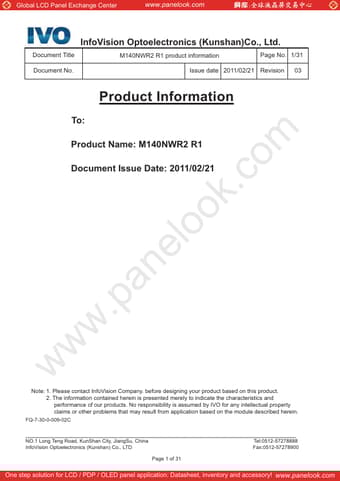

Additional preview pages of the M140NWR2-R1 datasheet.

M140NWR2-R1 Product details

Description

New Description Remark 00 2010/07/27 All -- First issued 01 2010/08/31 4 Power Consumption: Max (3.6)w 7 Color Chromaticity :TBD 11 02 2010/09/03 19 19 29 PLED: TBD IDD: TBD PDD: TBD EDID:TBD Power consumption: Max 3.8 w Rx/Ry:0.590,0.345 Gx/Gy:0.340,0.570 Bx/By:0.150,0.120 PLED: Typ.2.6w Max 2.8w IDD: Typ.0.27A PDD: Max 1w Add EDID table 03 2011/01/27 22 Old version Update drawing (back side) 04 2011/02/21 12 Old Signal Pin Assignment Update 19pin from CE to NC 20 05 2011/02

Features

Ŷ 14.0” TN TFT LCD Panel Ŷ LED Backlight System Ŷ Supported (1,366x768 pixels) resolution Ŷ Compatible with RoHS standard 1.3 Product Summary Items Screen Diagonal Specifications 14.0 Unit Inch Active Area 309.399 (H) x 173.952 (V) mm Pixels H x V 1,366 x3(RGB) x 768 - Pixel Pitch 0.2265×0.2265 mm Pixel Arrangement Display Mode White Luminance R. G. B. Vertical Stripe Normally White 200 (Typ. ) 5 Points Average cd /m2 Contrast Ratio Response Time 500 (Typ. ) 8 (Typ. ) msec Input Vo.
