MP5035GJ - Configurable Current Limit Switch

Product Overview

MPS

📥 Download Datasheet

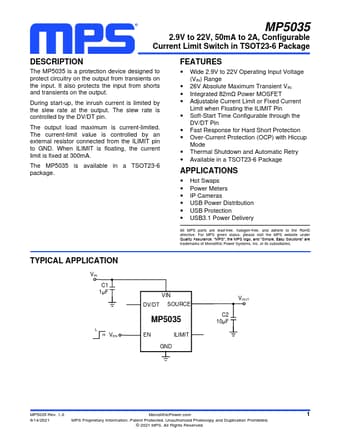

MP5035GJ Configurable Current Limit Switch by MPS - Datasheet Preview — Datasheet preview – MP5035GJ

Datasheet Details

Part number	MP5035GJ
Manufacturer	MPS
File Size	910.30 KB
Description	Configurable Current Limit Switch
Datasheet	MP5035GJ Datasheet
Note	This datasheet PDF includes multiple part numbers: MP5035GJ, MP5035. Please refer to the document for exact specifications by model.
Additional preview pages of the MP5035GJ datasheet.

Product details

Description

The MP5035 is a protection device designed to protect circuitry on the output from transients on the input.

Features

Wide 2.9V to 22V Operating Input Voltage (VIN) Range.
26V Absolute Maximum Transient VIN.
Integrated 82mΩ Power MOSFET.
Adjustable Current Limit or Fixed Current Limit when Floating the ILIMIT Pin.
Soft-Start Time Configurable through the DV/DT Pin.
Fast Response for Hard Short Protection.
Over-Current Protection (OCP) with Hiccup Mode.
Thermal Shutdown and Automatic Retry.
Available in a TSOT23-6 Package.
