MP5032 - QC 3.0 Controller

Product Overview

MPS

📥 Download Datasheet

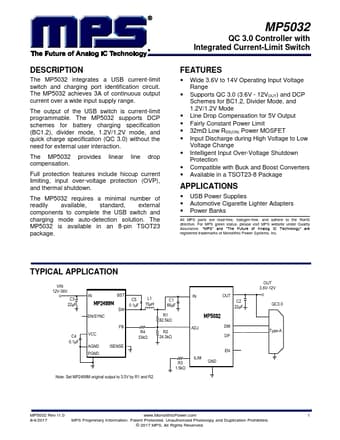

MP5032 QC 3.0 Controller by MPS - Datasheet Preview — Datasheet preview – MP5032

Datasheet Details

Part number	MP5032
Manufacturer	MPS
File Size	775.38 KB
Description	QC 3.0 Controller
Datasheet	MP5032 Datasheet
Additional preview pages of the MP5032 datasheet.

Product details

Description

The MP5032 integrates a USB current-limit switch and charging port identification circuit.

Features

include hiccup current limiting, input over-voltage protection (OVP), and thermal shutdown. The MP5032 requires a minimal number of readily available, standard, external components to complete the USB switch and charging mode auto-detection solution. The MP5032 is available in an 8-pin TSOT23 package. MP5032 QC 3.0 Controller with Integrated Current-Limit Switch.
