MP5034 - USB Charging Port Controller

Description

The MP5034 supports DCP schemes for battery charging specification (BC1.2), divider mode, 1.2V/1.2V mode, and quick-charge specification (QC 3.0) without the need for outside user interaction.

Features

  • include input overvoltage protection (OVP) and thermal shutdown. The MP5034 requires a minimal number of readily available, standard, external components to complete the USB switch and charging mode auto-detection solution. The MP5034 is available in an 8-pin TSOT23 package.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MP503 Air-Quality Gas Sensor Winsen
MP503 PRESS-FIT MOTOLOLA DIODES Shunye
MP5005 50 Amp Single Phase Bridge Rectifier Micro Commercial Components
MP5005 PRESS-FIT MOTOLOLA DIODES Shunye
MP5005W Single Phase Bridge Rectifier MCC

Other Datasheets by Monolithic Power Systems

Part Number Description
MP5034GJ USB Charging Port Controller
MP5031 USB PD Port Controller
MP5032 QC 3.0 Controller
MP5032GJ QC 3.0 Controller
MP5035 Configurable Current Limit Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

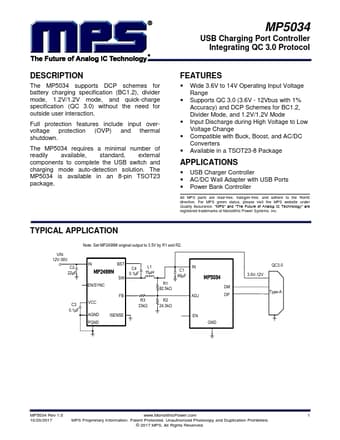

MP5034 USB Charging Port Controller Integrating QC 3.0 Protocol DESCRIPTION The MP5034 supports DCP schemes for battery charging specification (BC1.2), divider mode, 1.2V/1.2V mode, and quick-charge specification (QC 3.0) without the need for outside user interaction. Full protection features include input overvoltage protection (OVP) and thermal shutdown. The MP5034 requires a minimal number of readily available, standard, external components to complete the USB switch and charging mode auto-detection solution. The MP5034 is available in an 8-pin TSOT23 package. FEATURES  Wide 3.6V to 14V Operating Input Voltage Range  Supports QC 3.0 (3.6V - 12Vbus with 1% Accuracy) and DCP Schemes for BC1.2, Divider Mode, and 1.2V/1.
