MP5032GJ - QC 3.0 Controller

Product Overview

MPS

📥 Download Datasheet

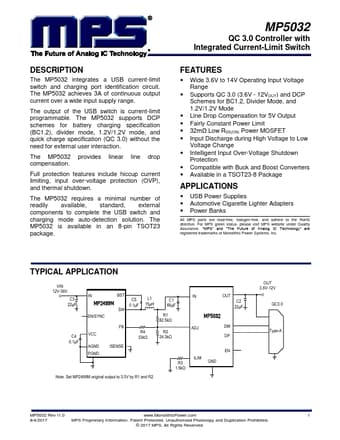

MP5032GJ QC 3.0 Controller by MPS - Datasheet Preview — Datasheet preview – MP5032GJ

Datasheet Details

Part number	MP5032GJ
Manufacturer	MPS
File Size	775.38 KB
Description	QC 3.0 Controller
Datasheet	MP5032GJ Datasheet
Note	This datasheet PDF includes multiple part numbers: MP5032GJ, MP5032. Please refer to the document for exact specifications by model.
Additional preview pages of the MP5032GJ datasheet.

Product details

Description

The MP5032 integrates a USB current-limit switch and charging port identification circuit.

Features

include hiccup current limiting, input over-voltage protection (OVP), and thermal shutdown. The MP5032 requires a minimal number of readily available, standard, external components to complete the USB switch and charging mode auto-detection solution. The MP5032 is available in an 8-pin TSOT23 package. MP5032 QC 3.0 Controller with Integrated Current-Limit Switch.
