MP3309GQG - White LED Driver

Product Overview

MPS

📥 Download Datasheet

MP3309GQG White LED Driver by MPS - Datasheet Preview — Datasheet preview – MP3309GQG

Datasheet Details

Part number	MP3309GQG
Manufacturer	MPS
File Size	470.58 KB
Description	White LED Driver
Datasheet	MP3309GQG Datasheet
Note	This datasheet PDF includes multiple part numbers: MP3309GQG, MP3309. Please refer to the document for exact specifications by model.

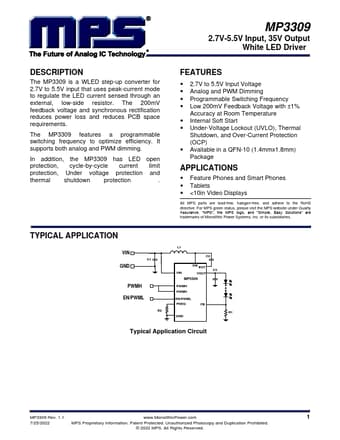

Additional preview pages of the MP3309GQG datasheet.

Product details

Description

The MP3309 is a WLED step-up converter for 2.7V to 5.5V input that uses peak-current mode to regulate the LED current sensed through an external, low-side resistor.

Features

a programmable switching frequency to optimize efficiency. It supports both analog and PWM dimming. In addition, the MP3309 has LED open protection, cycle-by-cycle current limit protection, Under voltage protection and thermal shutdown protection .
