MP3309C - White LED Driver

Name: MP3309C
SKU: MP3309C-1471620

MPS

📥 Download Datasheet

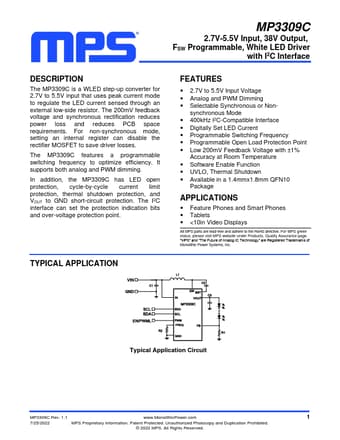

MP3309C Datasheet Preview — Preview of MP3309C PDF

Datasheet Details

Part number	MP3309C
Manufacturer	MPS
File Size	508.24 KB
Description	White LED Driver
Datasheet	MP3309C-MPS.pdf

MP3309C Product details

Description

The MP3309C is a WLED step-up converter for 2.7V to 5.5V input that uses peak current mode to regulate the LED current sensed through an external low-side resistor.

Features

a programmable switching frequency to optimize efficiency. It supports both analog and PWM dimming. In addition, the MP3309C has LED open protection, cycle-by-cycle current limit protection, thermal shutdown protection, and VOUT to GND short-circuit protection. The I2C interface can set the protection indication bits and over-voltage protection point.
