MP3309AGQ, MP3309A - White LED Driver

Name: MP3309AGQ
SKU: MP3309AGQ-1554591

MPS

📥 Download Datasheet

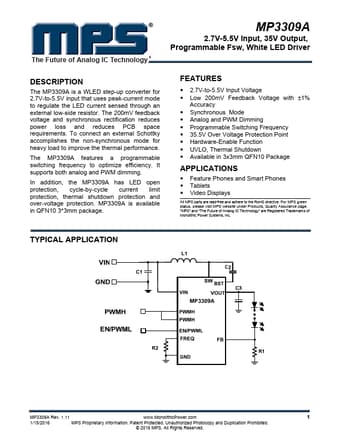

MP3309AGQ Datasheet Preview — This datasheet PDF includes multiple part numbers: MP3309AGQ, MP3309A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MP3309AGQ, MP3309A
Manufacturer	MPS
File Size	398.48 KB
Description	White LED Driver
Datasheet	MP3309A-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP3309AGQ, MP3309A. Please refer to the document for exact specifications by model.

MP3309AGQ Product details

Description

The MP3309A is a WLED step-up converter for 2.7V-to-5.5V input that uses peak-current mode to regulate the LED current sensed through an external low-side resistor.

Features

a programmable switching frequency to optimize efficiency. It supports both analog and PWM dimming. In addition, the MP3309A has LED open protection, cycle-by-cycle current limit protection, thermal shutdown protection and over-voltage protection. MP3309A is available in QFN10 3.
3mm package.
