MP3309CGQG - White LED Driver

Product Overview

MPS

📥 Download Datasheet

MP3309CGQG White LED Driver by MPS - Datasheet Preview — Datasheet preview – MP3309CGQG

Datasheet Details

Part number	MP3309CGQG
Manufacturer	MPS
File Size	508.24 KB
Description	White LED Driver
Datasheet	MP3309CGQG Datasheet
Note	This datasheet PDF includes multiple part numbers: MP3309CGQG, MP3309C. Please refer to the document for exact specifications by model.

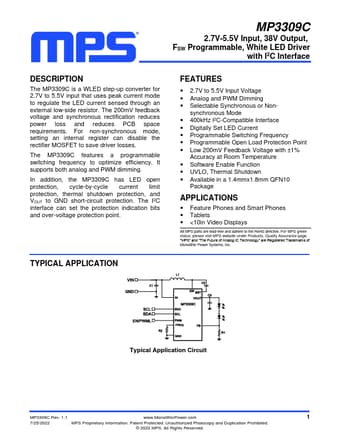

Additional preview pages of the MP3309CGQG datasheet.

Product details

Description

The MP3309C is a WLED step-up converter for 2.7V to 5.5V input that uses peak current mode to regulate the LED current sensed through an external low-side resistor.

Features

a programmable switching frequency to optimize efficiency. It supports both analog and PWM dimming. In addition, the MP3309C has LED open protection, cycle-by-cycle current limit protection, thermal shutdown protection, and VOUT to GND short-circuit protection. The I2C interface can set the protection indication bits and over-voltage protection point.
