MP2888AGU, MP2888A - Multi-Phase PWM Controller

MPS

The MP2888AGU by MPS is a Multi-Phase PWM Controller. Below is the official datasheet preview.

📥 Download Datasheet

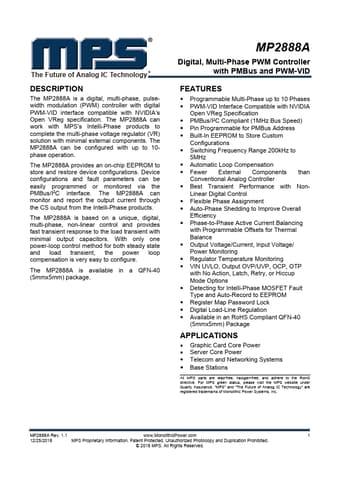

MP2888AGU Multi-Phase PWM Controller by MPS - Datasheet Preview — Official preview page of the **MP2888AGU** Multi-Phase PWM Controller datasheet (MPS).

Datasheet Details

Part number	MP2888AGU, MP2888A
Manufacturer	MPS
File Size	4.09 MB
Description	Multi-Phase PWM Controller
Datasheet	MP2888A-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP2888AGU, MP2888A. Please refer to the document for exact specifications by model.
Additional preview pages of the MP2888AGU datasheet.

MP2888AGU Product details

Description

The MP2888A is a digital, multi-phase, pulsewidth modulation (PWM) controller with digital PWM-VID interface compatible with NVIDIA’s Open VReg specification.

Features

Programmable Multi-Phase up to 10 Phases.
PWM-VID Interface Compatible with NVIDIA Open VReg Specification.
PMBus/I2C Compliant (1MHz Bus Speed).
Pin Programmable for PMBus Address.
Built-In EEPROM to Store Custom Configurations.
Switching Frequency Range 200kHz to 5MHz.
Automatic Loop Compensation.
Fewer External Components than Conventional Analog Controller.
Best Transient Performance with Non- Linear Digital Control.
Flexible Phase Assignmen.
