MP2884AGU, MP2884A - Multi-Phase PWM Controller

MPS

The MP2884AGU by MPS is a Multi-Phase PWM Controller. Below is the official datasheet preview.

📥 Download Datasheet

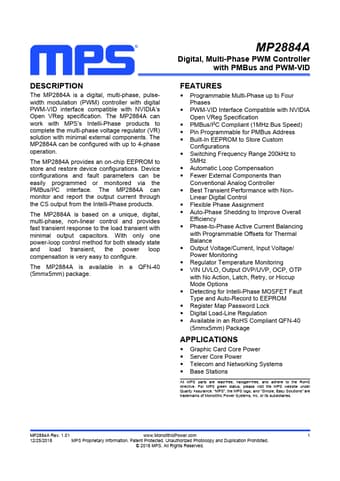

MP2884AGU Multi-Phase PWM Controller by MPS - Datasheet Preview — Official preview page of the **MP2884AGU** Multi-Phase PWM Controller datasheet (MPS).

Datasheet Details

Part number	MP2884AGU, MP2884A
Manufacturer	MPS
File Size	5.10 MB
Description	Multi-Phase PWM Controller
Datasheet	MP2884A-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP2884AGU, MP2884A. Please refer to the document for exact specifications by model.
Additional preview pages of the MP2884AGU datasheet.

MP2884AGU Product details

Description

The MP2884A is a digital, multi-phase, pulsewidth modulation (PWM) controller with digital PWM-VID interface compatible with NVIDIA’s Open VReg specification.

Features

Programmable Multi-Phase up to Four Phases.
PWM-VID Interface Compatible with NVIDIA Open VReg Specification.
PMBus/I2C Compliant (1MHz Bus Speed).
Pin Programmable for PMBus Address.
Built-In EEPROM to Store Custom Configurations.
Switching Frequency Range 200kHz to 5MHz.
Automatic Loop Compensation.
Fewer External Components than Conventional Analog Controller.
Best Transient Performance with Non- Linear Digital Control.
Flexible Phase Assignm.
