MP28114 - 600mA Low-Voltage Synchronous Step-Down Converter

MPS

The MP28114 by MPS is a 600mA Low-Voltage Synchronous Step-Down Converter. Below is the official datasheet preview.

📥 Download Datasheet

MP28114 600mA Low-Voltage Synchronous Step-Down Converter by MPS - Datasheet Preview — Official preview page of the MP28114 600mA Low-Voltage Synchronous Step-Down Converter datasheet (MPS).

Datasheet Details

Part number	MP28114
Manufacturer	MPS
File Size	497.70 KB
Description	600mA Low-Voltage Synchronous Step-Down Converter
Datasheet	MP28114-MPS.pdf

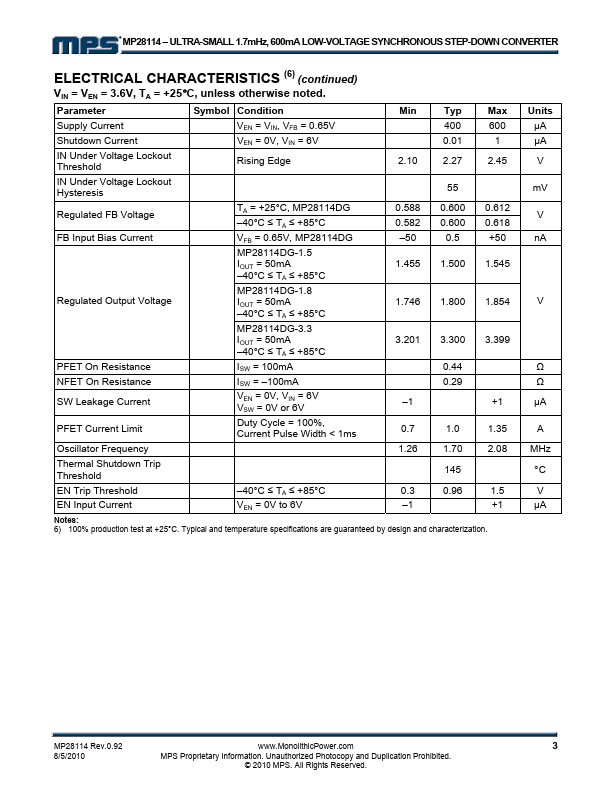

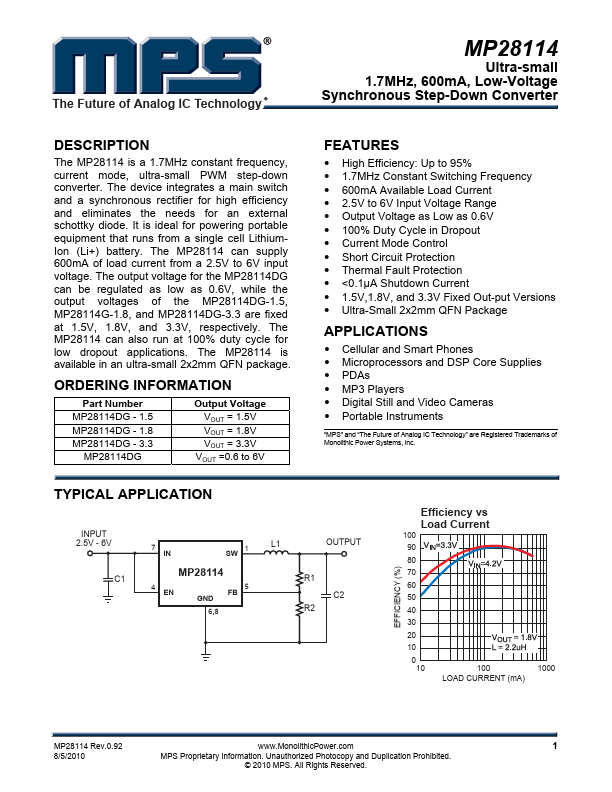

Additional preview pages of the MP28114 datasheet.

MP28114 Product details

Description

The MP28114 is a 1.7MHz constant frequency, current mode, ultra-small PWM step-down converter.

Features

High Efficiency: Up to 95%.
1.7MHz Constant Switching Frequency.
600mA Available Load Current.
2.5V to 6V Input Voltage Range.
Output Voltage as Low as 0.6V.
100% Duty Cycle in Dropout.
Current Mode Control.
Short Circuit Protection.
Thermal Fault Protection.
