MP2884A - Multi-Phase PWM Controller

Name: MP2884A
SKU: MP2884A-1548381

MPS

📥 Download Datasheet

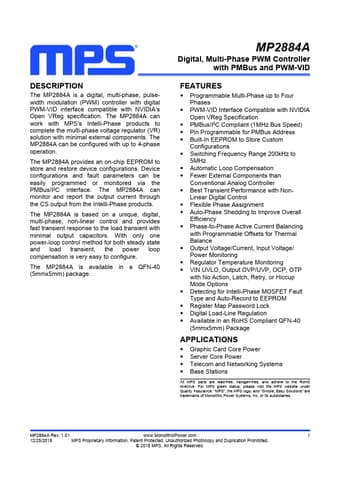

MP2884A Datasheet Preview — Preview of MP2884A PDF

Datasheet Details

Part number	MP2884A
Manufacturer	MPS
File Size	5.10 MB
Description	Multi-Phase PWM Controller
Datasheet	MP2884A-MPS.pdf

MP2884A Product details

Description

The MP2884A is a digital, multi-phase, pulsewidth modulation (PWM) controller with digital PWM-VID interface compatible with NVIDIA’s Open VReg specification.

Features

Programmable Multi-Phase up to Four Phases.
PWM-VID Interface Compatible with NVIDIA Open VReg Specification.
PMBus/I2C Compliant (1MHz Bus Speed).
Pin Programmable for PMBus Address.
Built-In EEPROM to Store Custom Configurations.
Switching Frequency Range 200kHz to 5MHz.
Automatic Loop Compensation.
Fewer External Components than Conventional Analog Controller.
Best Transient Performance with Non- Linear Digital Control.
Flexible Phase Assignm.
