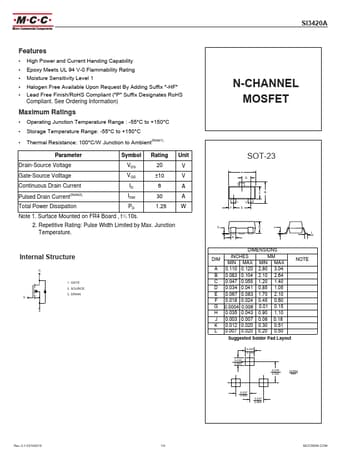

SI3420A
Features
• High Power and Current Handing Capability • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Halogen Free Available Upon Request By Adding Suffix "-HF" • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS
Compliant. See Ordering Information)
Maximum Ratings
• Operating Junction Temperature Range : -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 100°C/W Junction to Ambient(Note1)
Parameter
Symbol Rating Unit
Drain-Source Voltage
VDS
20
V
Gate-Source Volltage
VGS
±10
V
Continuous Drain Current Pulsed Drain Current(Note2)
ID
6
A
IDM
30
A
Total Power Dissipation
PD
Note 1. Surface Mounted on FR4 Board , t≤10s.
1.25
W
2. Repetitive Rating: Pulse Width Limited by Max.
