MA4E1340 Silicon Medium Barrier Schottky Diode

MA4E1340 Description

MA4E1340 Series Silicon Medium Barrier Schottky Diodes .
and Applications The MA4E1340 series is a silicon medium barrier Schottky diode suitable for use in mixer, detector and limiter circuits.

MA4E1340 Features

* RF & Microwave Medium Barrier Silicon 70 V Schottky Diode
* Available as Single Diode, Series Pair or Unconnected Pair Configurations.
* Low Profile Surface Mount Plastic Package
* Lead Free
* RoHS

MA4E1340 Applications

* The MA4E1340 series is a silicon medium barrier Schottky diode suitable for use in mixer, detector and limiter circuits. These diodes are also suitable for usage in anti-parallel, shunt power surge protection circuits for 50 Ω and 75 Ω systems. The MA4E1340 Series of Schottky diodes is available in

📥 Download Datasheet

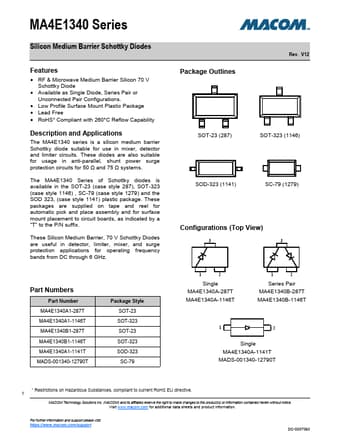

Preview of MA4E1340 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MA4E1340
Manufacturer
MACOM
File Size
863.38 KB
Datasheet
MA4E1340-MACOM.pdf
Description
Silicon Medium Barrier Schottky Diode
