MA4E1339 Silicon Medium Barrier Schottky Diode

MA4E1339 Description

Silicon Medium Barrier Schottky Diode MA4E1339 Series .
The MA4E1339 series is a silicon, medium barrier Schottky diode suitable for use in mixer or detector circuits.

MA4E1339 Applications

* The MA4E1339 family of silicon Schottky diodes may be used in mixer or detector circuits. The MA4E1339A-287T, MA4E1339A-1146T, and MA4E1339A-1141T are suitable for use in single ended mixers or single diode detectors. The MA4E1339B-287T and MA4E1339B-1146T are suitable for use in single balanced mix

📥 Download Datasheet

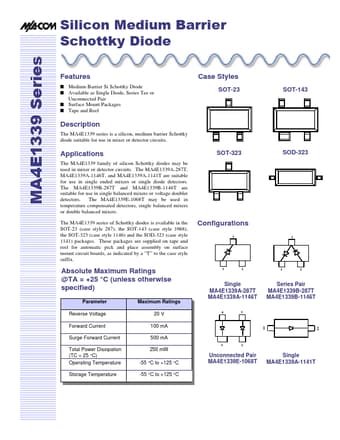

Preview of MA4E1339 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MA4E1339
Manufacturer
Tyco
File Size
118.98 KB
Datasheet
MA4E1339_TycoElectronics.pdf
Description
Silicon Medium Barrier Schottky Diode
