LSG11N65E - N-channel 650V Power MOSFET

Description

LonFETTM Power MOSFET is fabricated using advanced super junction technology.

The resulting device has extremely low on resistance, making it especially suitable for applications which require superior power density and outstanding efficiency.

Features

  • Ultra low RDS(on).
  • Ultra low gate charge (typ. Qg = 34nC).
  • High body diode ruggedness.
  • Easy to use.
  • 100% UIS tested.
  • RoHS compliant TO-251 TO-252,TO-263 TO-220 TO-220MF TO-247 TO-262.

📥 Download Datasheet

Datasheet Details

Part number LSG11N65E
Manufacturer Lonten
File Size 1.29 MB
Description N-channel 650V Power MOSFET
Datasheet download datasheet LSG11N65E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LSG SCREW TERMINAL ALUMINUM ELECTROLYTIC CAPACITORS Rubycon
LSG3331 3 mm (T1) MULTILED / Non Diffused Siemens Semiconductor
LSG3331-JO 3 mm (T1) MULTILED / Non Diffused Siemens Semiconductor
LSG3351 3 mm (T1) MULTILED / Diffused Siemens Semiconductor
LSG3351-HO 3 mm (T1) MULTILED / Diffused Siemens Semiconductor

Other Datasheets by Lonten

Part Number Description
LSG04N65 N-channel MOSFET
LSG04N70A N-channel Power MOSFET
LSG07N70 N-channel MOSFET
LSGE085R036 N-channel 85V 120A Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

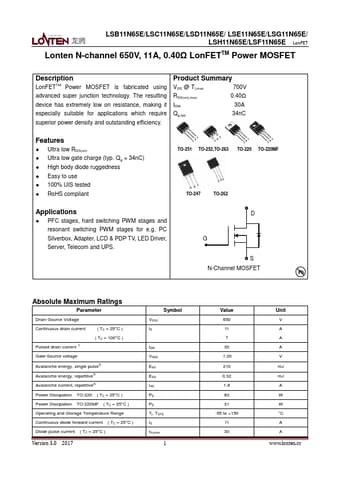

LSB11N65E/LSC11N65E/LSD11N65E/ LSE11N65E/LSG11N65E/ LSH11N65E/LSF11N65E LonFET Lonten N-channel 650V, 11A, 0.40Ω LonFETTM Power MOSFET Description LonFETTM Power MOSFET is fabricated using advanced super junction technology. The resulting device has extremely low on resistance, making it especially suitable for applications which require superior power density and outstanding efficiency. Product Summary VDS @ Tj,max 700V RDS(on),max 0.40Ω IDM 30A Qg,typ 34nC Features  Ultra low RDS(on)  Ultra low gate charge (typ. Qg = 34nC)  High body diode ruggedness  Easy to use  100% UIS tested  RoHS compliant TO-251 TO-252,TO-263 TO-220 TO-220MF TO-247 TO-262 Applications D  PFC stages, hard switching PWM stages and resonant switching PWM stages for e.g.
