LM201W01-STB1 - WSXGA+ TFT LCD

📥 Download Datasheet

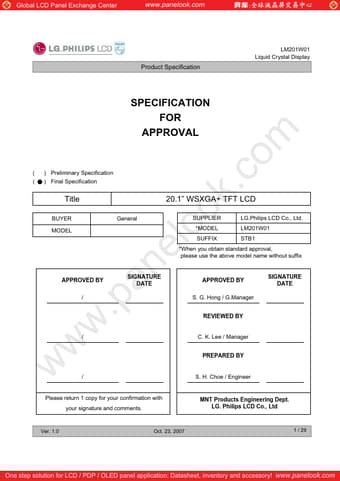

LM201W01-STB1 Datasheet Preview — Preview of LM201W01-STB1 PDF

Datasheet Details

Part number	LM201W01-STB1
Manufacturer	LG
File Size	942.70 KB
Description	WSXGA+ TFT LCD
Datasheet	LM201W01-STB1-LG.pdf

LM201W01-STB1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS LM201W01 Liquid Crystal Display Page 1 2 3 4 5 6 6 9 12 14 15 16 17 22 25 26 26 26 27 27 27 28 Ver.1.0 Oct.23, 2007 2 / 29 One step solution for

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 1.0 20.1 inches(511.133mm) diagonal (Aspect ratio 16:10) 459.4(H) x 296.4 (V) x 22.8(D) mm (Typ. ) 0.258mm x 0.258mm 1680 horiz. By 1050 vert. Pixels RGB strip arrangement 8bit, 16,7 M colors 280 cd/m2 (5 points Avg. ) Viewing Angle Free ( R/L 178(Typ. ), U/D 178(Typ) ) Total 39.05 Watt(Typ. ) (6.08 Watt@VLCD, 32.97 W.
